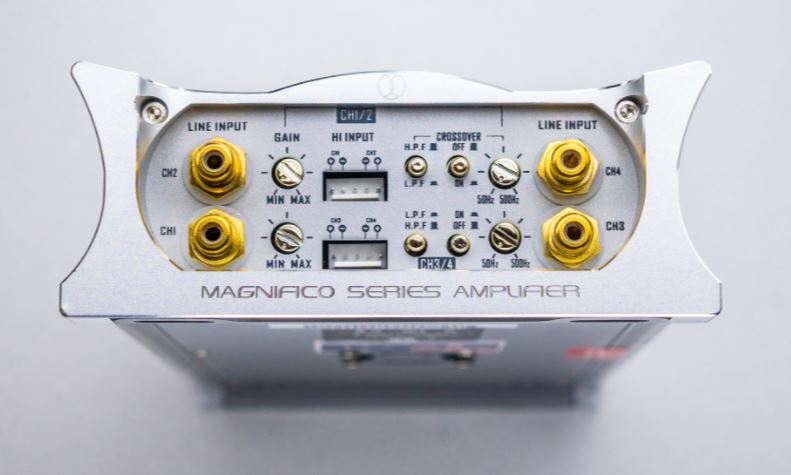

It is a 4 channel amplifier design to satisfy those discerning music lovers with moderate music level 4 X 88 watts and demanding small size W 135mm H 50mm L 310mm. The components selected and the sound tuning is by the designer of famous ULTIMATE ; REFEENCE and TA-2 Amplifiers. That guaranty a certain sound quality level.
- Dimensions: 54 x 135 x 308 mm
- Weight: 2.4 Kg
- Supply voltage: 12 v
- External fuse: 60 A
- Internal fuse: Not
- Built-in cooling fan: Yes
- Maximum current: 64 (35) A
- Standby Current Consumption: 0.7 (0.35) A
- Bass EQ @ 60 Hz: Yes
- High pass filter: (on / off) 50-500 Hz
- Low pass filter: (on / off) 50-500 Hz
- High level entrance: Yes
- Input sensitivity: 1-4 V
- Input impedance, high level: 45 ohm
- Input impedance, low: 5000 ohm
- Operating frequency range: 10-60000 Hz
- Attenuation coefficient: > 300
- Signal to noise ratio, weighted average: 110 dB
- Bridge power: 2 channels of 290 W each
- Power at 2 Ohm (RMS): 4 channels of 150 watts
- Power at 4 Ohm (RMS): 4 channels of 85 W each
- Amplifier class: A / B
- Number of channels: 4
