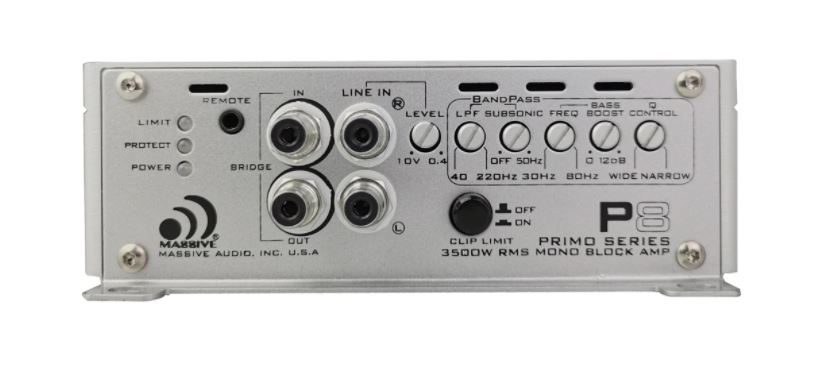

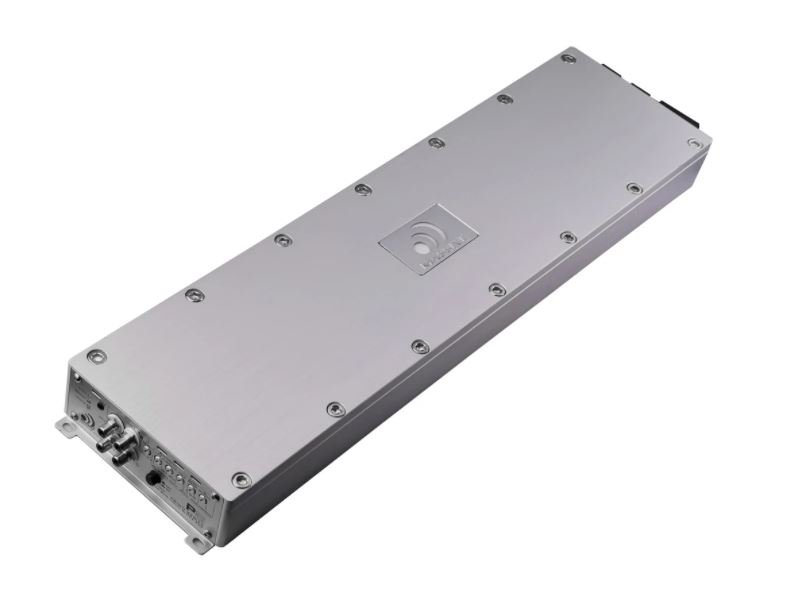

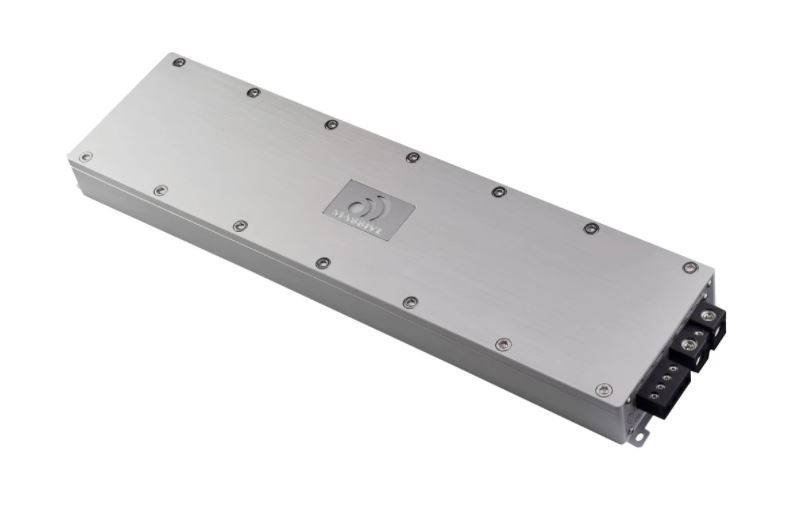

The Primo Amplifiers are our top of the line in performance and provide Massive amounts of Power in a stylish and heat sink. These CEA 2006 Certified amplifiers boast advanced Digital Power Supply Switching, Bridgeable RCA Connections, Matched MOSFET "N" Drive outputs with an advanced Six Way Protection. All of these features are mounted in a beautiful brushed aluminum "fin-less" heat sink with a ﾬ" milled top plate bolted down with "hex bolts". The four cornered hex bolts unscrew to reveal mounting tubes (see attached pictures) that allows the installer to bolt down the amp for a razor clean installation. Top it off with a soft blue center logo glow with hundreds of "micro" LEDs. Massive Audio PRIMO Series combines "Style, Form, Function and Performance".
FEATURES:
- Input Sensitivity Low Level: 400mVrms ~ 10Vrms
- Auto Hi-Level Inoput via RCA Input
- 12v Remote Output When Hi-level Signal is Used
- Parametric EQ with 0 - 12 dB Boost
- All Models Linkable with Single RCA for easy upgrade
- Short Circuit, Thermal, Reverse Voltage and Over Voltage Protection
- N-Channel Circuitry for High-Efficiency
- 24 dB Low Pass Crossovers with an adjustable range of 30Hz - 220Hz
- Heavy Duty Power Supply
- Illuminated Logo
- Heavy Duty Aluminum Heat Sink
- Designed and Engineered in U.S.A.
- Proprietary "Bass Kompressor" Circuitry provides Low-Frequency Enhancement
- Extreme Power in a Small Footprint
- "Q Control" to fine tune the curve on the bass boost
- "Clip Limit Switch" that will allow the amplifier to take up to 16.5 volts
- Adjustable Low Pass 18dB Sub Harmonic Filter with a range of 0Hz - 60Hz
- Adjustable center frequency range of 30-80 Hz
- Nickel Plated Connectors
- High Efficiency Class "D" Design
SPECIFICATIONS:
- RMS Power: 3500w x 1
- PEAK Power: 7000w x 1
- RMS @ 1 Ohms: 2300w x 1
- RMS @ 2 Ohms: 1400w x 1
- Min Impedance: 0.5 Ohm
- Bass Boost Freq: 30Hz - 120Hz
- THD: <0.03%
- S/N: >100dB
- Subsonic Filter (HPF): 0-60Hz
- RCA Voltage: 400mV - 10V
- Freq. Response: 10Hz - 220Hz
- Dimensions: 19.9" x 6.5" x 2.1" (50,55 x 16,51 x 5,33 cm)
- Bass Remote: UR1 (Optional)
