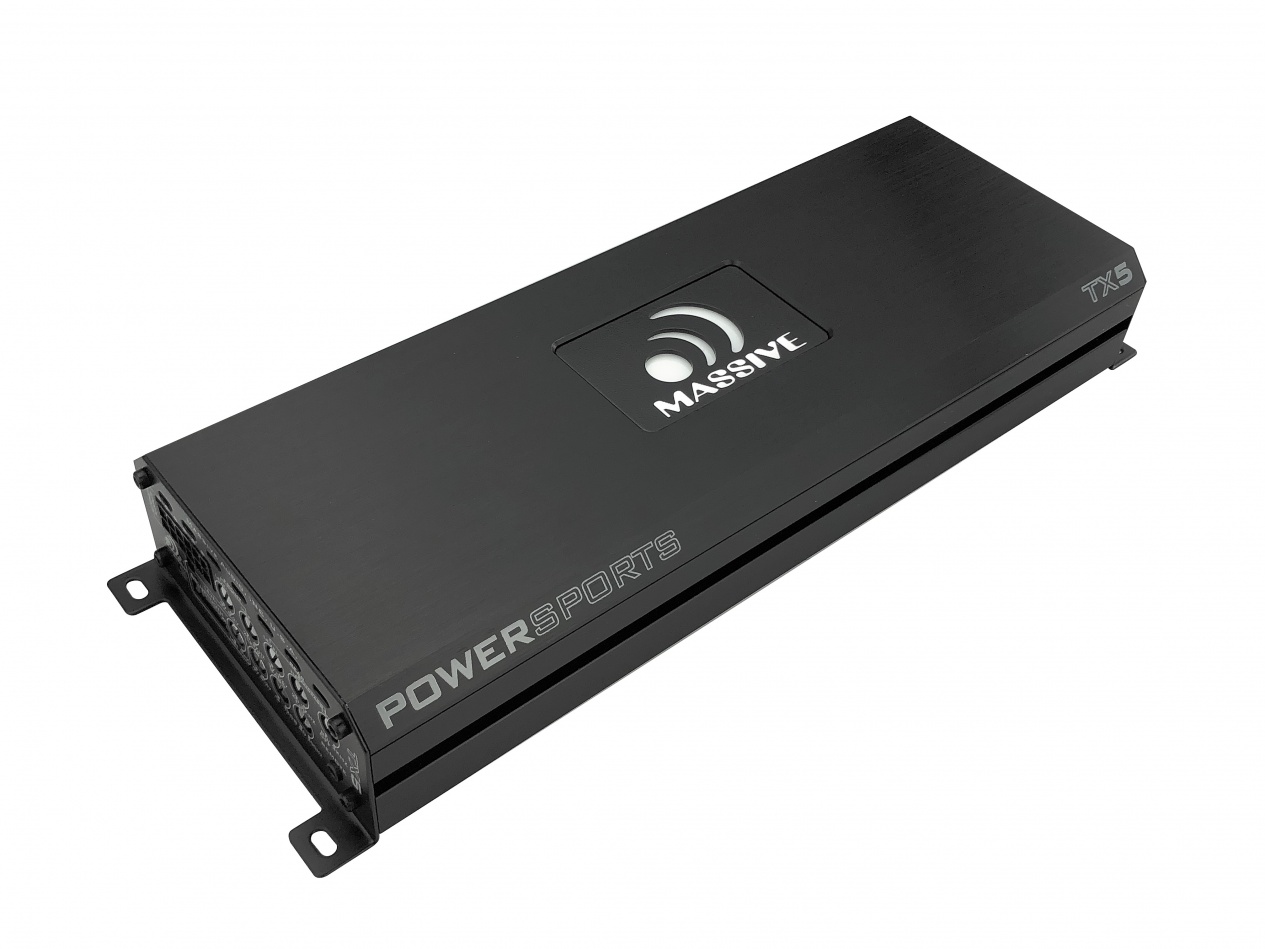

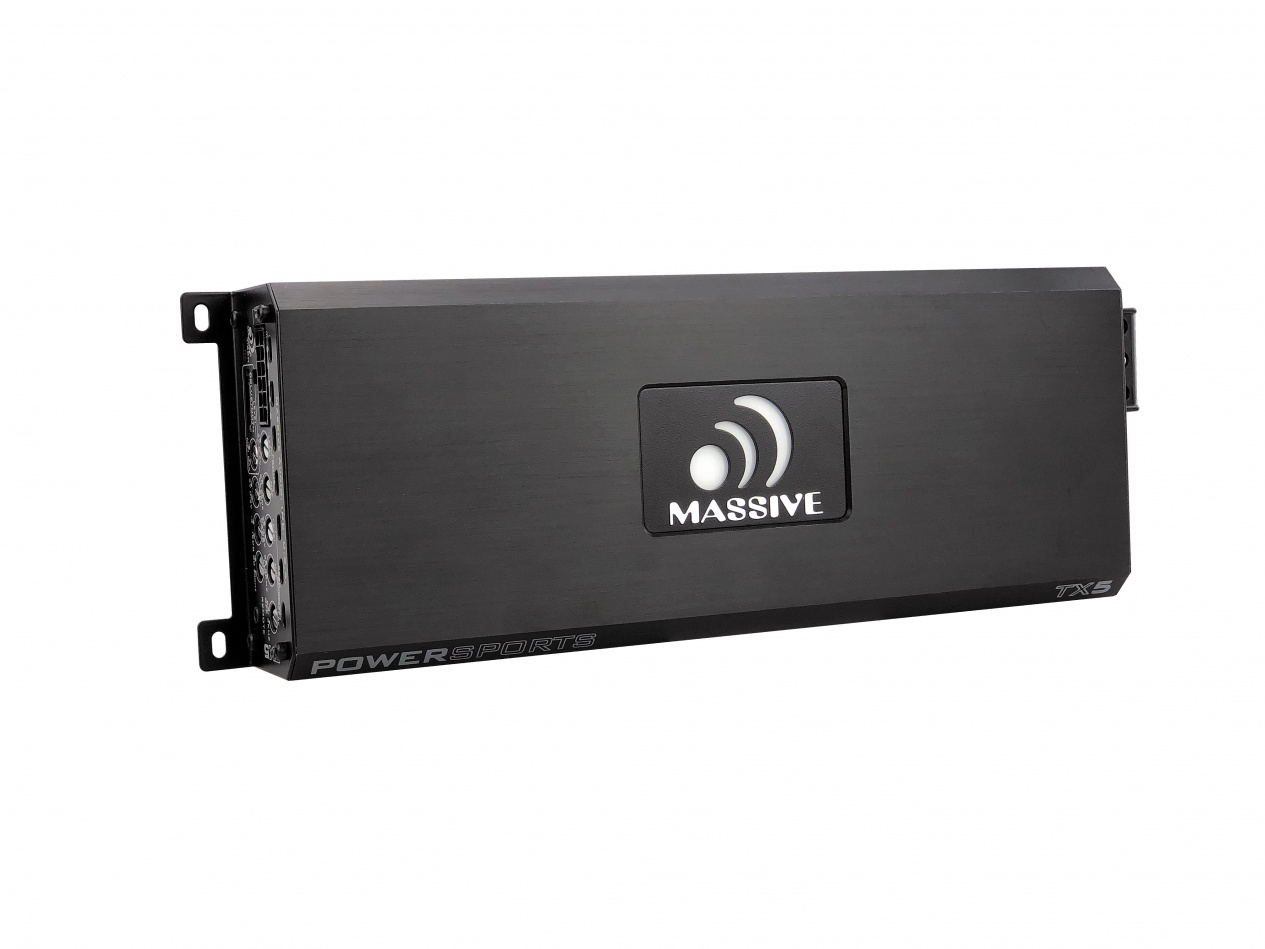

Massive Audio TRIDENT SERIES Amplifiers with Bluetooth Audio Streaming come dressed in a black anodized brushed aluminum heat-sink with stainless-steel end caps and a blue backlit logo. The TX5 Five Channel circuit board is treated with Dura-Coated 320°F Epoxy for water resistance.
Powerful and TINY only 4.25” W x 1.6” H x 12.17" L. It’s full range 5 channel digital platform design offers a built In OEM Line Converter that can take up to 9V in which activates the Auto Turn On (no turn on wire needed). when ATO is used the 12V input converts to a 12V output that can activate additional system products if needed.
An on-board SATA1 input accommodates the optional UBT1 Bluetooth Dongle for audio streaming and there is a remote bass gain control input for use with the optional UR1. The BLX5-M also has a "Docking Port" to plug in an optional Railcap Booster (RCLX) or RCT
Accessories include MOLEX-to-RCA & MOLEX-to-High Level Leads depending on if you are using a source unit with or without RCA outputs.
FEATURES:
- Extreme Power with Mini Compact Footprint
- Full Range Digital Design
- Conformal Dura-Coated 320°F Epoxy PC Boards to resist Moisture, Dust and Extreme Heat
- 4 Layer PCB design with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET High Grade Switching Devices
- Bluetooth Audio Streaming with optional UBT1 Dongle
- Built-in Auto Sensing Turn On/Off Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Inputs)
- -3 ~ + 12DB Variable Bass Boost 40 Hz - 200 Hz
- Advanced 5 Way Protection Circuitry
- RCLX ~ Railcap Booster (Optional)
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
- UR1 Bass Remote Gain Control Input (optional)
SPECIFICATIONS:
- Peak Output Power @ 14.4V: 480W x 2 + 1200W Max
- 1 Ohm RMS: n/a
- 2 Ohm RMS: 240W x 4 + 600W
- 4 Ohm RMS: 120W x 4 + 300W
- 4 Ohm Bridged: 480W x 2 + 300W
- Input Level: 0.2~9.0v
- Freq. Response: 10Hz~25KHz
- THD at 4 Ohm Load 30% Rated Power: <0.03%
- S/N Ratio: >90dB
- BassBoost: -6~12dB (Woofer Channel)
- Minimum Load: 2 Ohm Stereo
- Gain Remote: UR1 Gain Remote (Optional)
- Dimensions: 1.6"H x 4.25"W x 12.17"L (4,06 x 10,79 x 30,91 cm)
