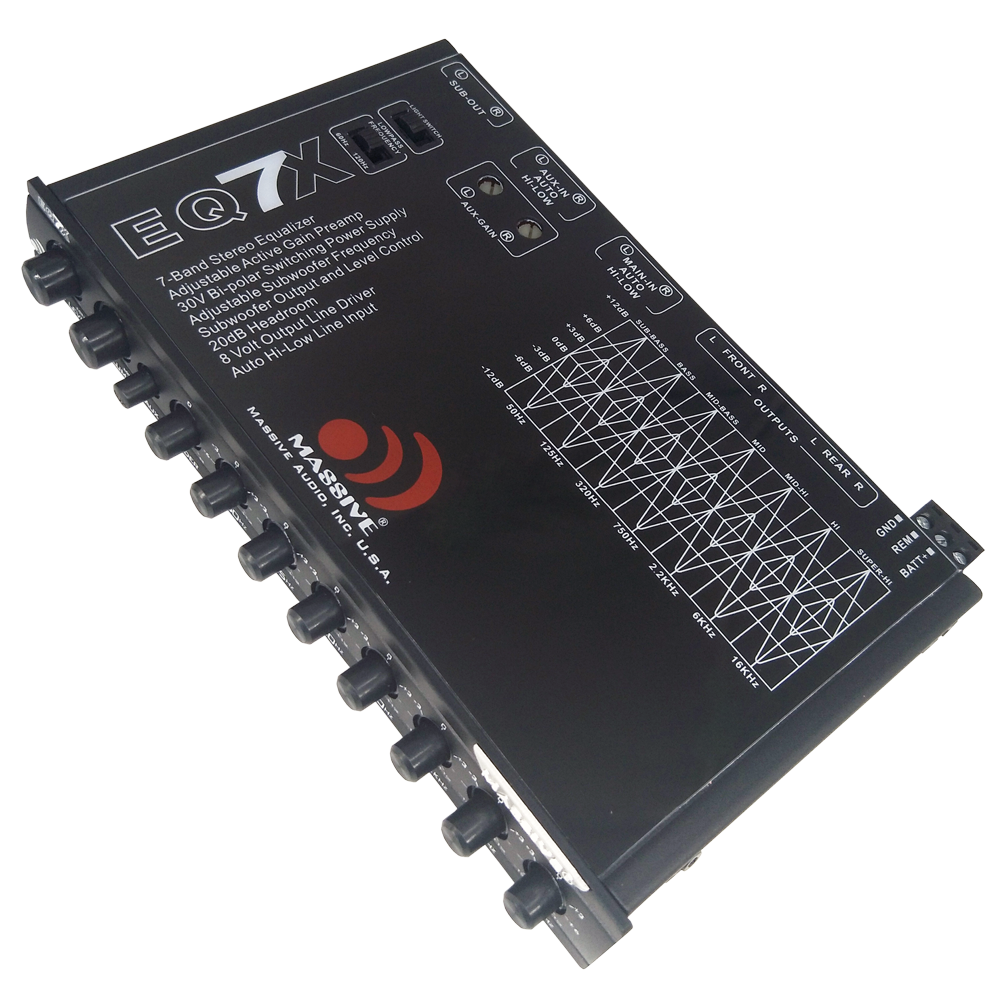

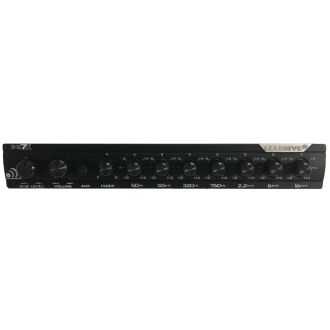

The Massive EQ 7X is a half din 7 Band Graphic EQ that will correct peaks and dips in sound characteristics associated with most vehicles' interior that dampens and limits both speaker output and imaging. This EQ provides powerful features in a compact size.
SPECIFICATIONS:
- 1/2 DIN
- 7 Band Graphic Equalizer
- Gold Plated RCA Connectors
- 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, 16KHz
- Each Frequency Adjustable From -12dB to +12dB
- * -15dB to +15dB for Subwoofer Frequencies
- Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz
- 8 Volt Output Line Driver
- RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone
- 6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)
- Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs
- Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N
- Adjustable Master Volume Level Control
- Adjustable Active Gain Preamp
- 30V Bi-Polar Switching Power Supply
- 20dB Headroom
- Adjustable Subwoofer Level Control
- Input Impedance 20K Ohms
- Output Impendance 2K Ohms
- Stereo Separation 82dB / 1KHz
- Operating Voltage 11V - 15V Negitive Ground
- ISO Mounting Holes / Removable Trim Ring
- 2-Channel RCA Input with Adjustable Gain
- Dimensions: 7"(W) " 1"(H) " 4 1/8"(D)
