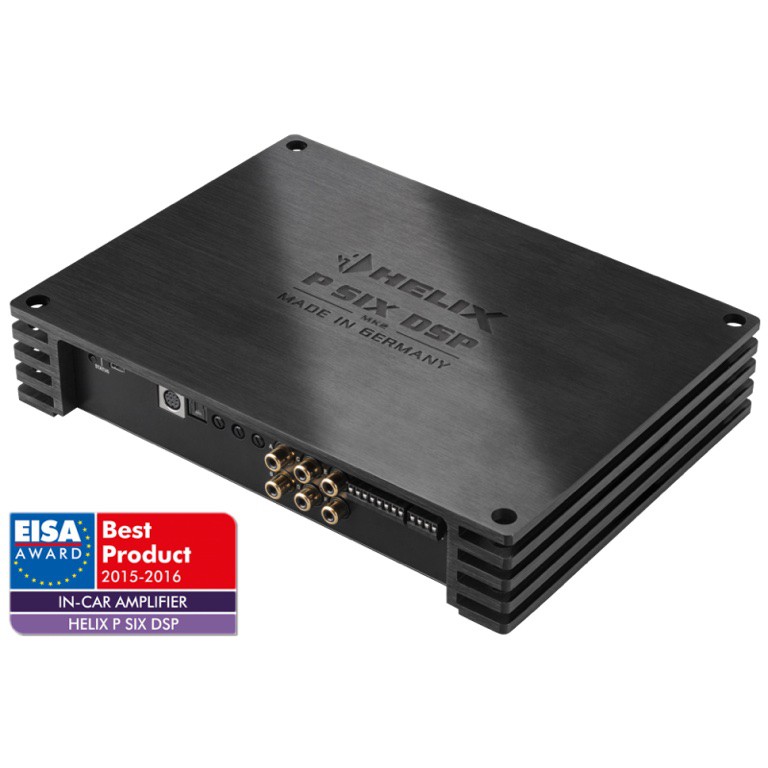

The HELIX P SIX DSP MK2 6-channel amplifier is not built to solely deliver loads of clean power it also incorporates a cutting-edge 8-channel DSP with outstanding processing power. This amalgamation sets a completely new standard with its “Ultra HD Class D” amplifier technology. Thanks to its 96 kHz sampling rate and an extended audio bandwidth of more than 40 kHz, this technological feat of precision engineering raises the bar in terms of sound quality. If we put all that aside for a moment, versatility was another major milestone to be reached during the development process. Therefore, we are happy to introduce HEC. The HELIX Extension Card (HEC) slot allows you to extend the devices possibilities well beyond the commonplace RCA jacks. Interfaces like a Bluetooth® Audio Streaming module or a High Resolution Audio USB soundcard have been crafted to give you more options than ever. Two fully-processed RCA outputs provide connectivity for daisy-chaining more amplifiers without a need for a second DSP. The configuration of the internal 64 Bit DSP could hardly be easier thanks to the professional and user-friendly DSP PC-Tool software that offers almost unlimited sound tuning features. Despite this impressive feat of engineering, the P SIX DSP MK2 has not shed its HELIX design heritage it still has the clean design while remaining very compact for ease of installation.
- RMS power: Channel A - F @ 4 Ohms: 120 Watts per channel (≤ 1% THD+N), Channel C - F @ 2 Ohms: 230 Watts per channel (≤ 1% THD+N)
- Inputs: 6 x RCA / Cinch
- 6 x Highlevel speaker input
- 1 x Optical SPDIF (12 - 96 kHz)
- 1 x Remote In
- Input sensitivity: RCA / Cinch 2 - 4 Volts or 4 - 8 Volts
- Highlevel 5 - 10 Volts or 10 - 20 Volts

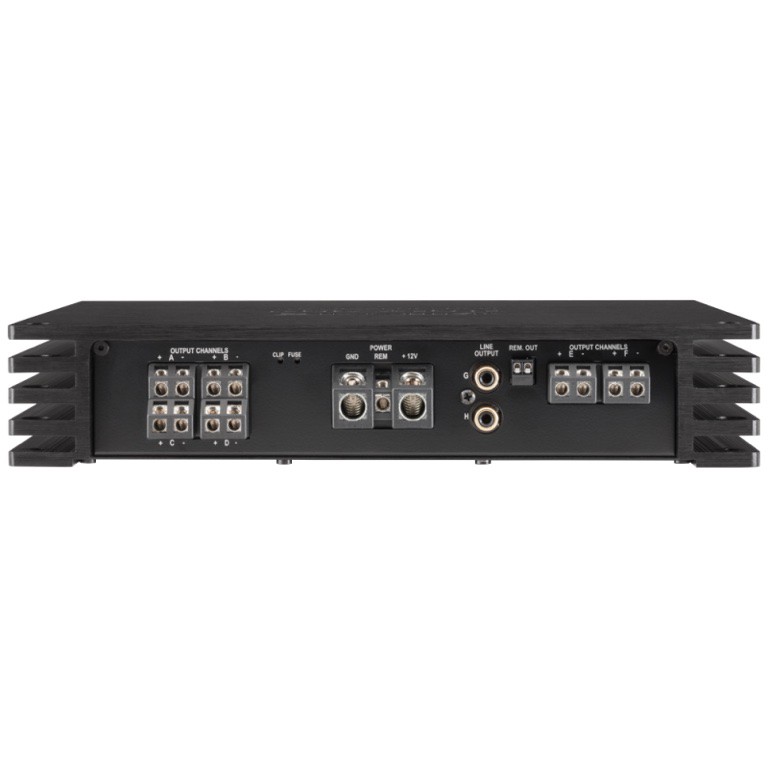

- Outputs: 6 x Speaker
- 2 x RCA / Cinch
- 2 x Remote Out
- Output voltage RCA: 3 Volts RMS
- Frequency response: 20 Hz - 44,000 Hz
- DSP resolution: 64 Bit
- DSP power: 295 MHz (1.2 billion MAC operations per second)
- Sampling rate: 96 kHz
- Signal converters: A/D: BurrBrown
- D/A: BurrBrown
- Signal-to-noise ratio (A-weighted): 105 dB (digital input)
- 100 dB (analog input)
- Distortion (THD): 0.008 %
- Damping factor: 100
- Input impedance RCA / Cinch: 64 kOhms
- Input impedance highlevel: 13 Ohms or 64 kOhms
- Operating voltage: 10.5 - 32 Volts (max. 5 sec. down to 6 Volts)
- Additional features: Control Input, USB, HEC slot
- Dimensions (H x W x D): 50 x 250 x 190 mm / 1.97 x 9.84 x 7.48”
