Reference-mallistossa on valikoituja HighEnd-tuotteita uskomattoman upealla äänenlaadulla. Näissä tuotteissa ei käytetä kompromisseja eikä tehdä säästöjä vaan suunnittelu ja valmistus tapahtuvat täysin äänenlaadun ehdoilla.

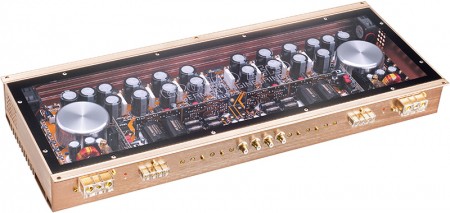

- High-End pure sound quality amplifier
- 1 Ohm stabile stereo / 2 Ohm bridged
- Symmetrical dual-2 channel layout
- Shielded and separated dual power supply
- Continuously variable Bias Setting Class AB - nearly Class A
- Highpass / Subsonic adjustable 40 - 3000 Hz
- Lowpass adjustable 40 - 3000 Hz
- Bandpass adjustable 40 - 3000 Hz
- Bypass-function to switch-off each filters out of operation
- Adjustable input sensitivity
- Soft delayed remote turn-on
- Power & Protection indicator
- Thermal, over current, speaker short, Speaker DC protection
- Temperature-sensitive controlled fan
- Plexiglas bottom plate
- White LED illumination inside
- Selected high-end SANKEN® transistors
- Ground Zero exclusive Mundorf Mcap® capacitors
- Copper anodized aluminum strand cast heatsink
- Output Power @ 4 Ohm (CEA*)4 x 150 W
- Output Power @ 2 Ohm (CEA*)4 x 270 W
- Output Power @ 1 Ohm (CEA*)4 x 425 W
- Bridge mode @ 4 Ohm (CEA* / 10% THD)2 x 650 W
- Bridge mode @ 2 Ohm (CEA* / 10% THD)2 x 1000 W
- Lowpass40 - 3000 Hz
- Highpass40 - 3000 Hz
- Bandpass40 - 3000 Hz
- Subsonic40 - 3000 Hz
- Dimensions 59 x 6,75 x 23,6 cm
