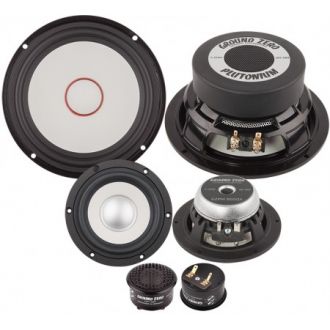

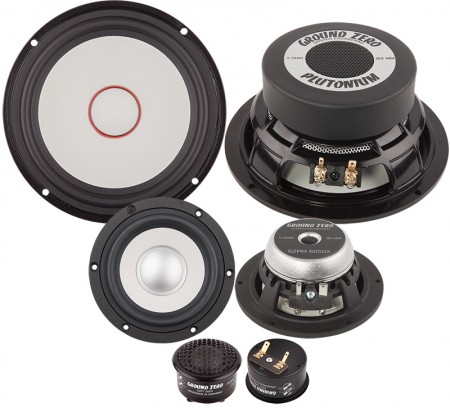

6.5” Woofer with alu-ceramic cone and linearised ferrit motor (GZPK 16SQ) - 3.15” Midrange with magnesium cone and compact neodym motor (GZPM 80SQX) - Resonance free cast basket - Rubber surrounds and connex spiders - 1.1” tweeter with coupled chamber and 2-layer coated silk dome (GZPT 28SX) - Speakers verified with the Ground Zero owned Klippel system
- 3 Way compo
- Diameter of midwoofer or midrange165 mm / 6.5″ (Woofer) - 80 mm / 3.15″ (Mid)
- Mounting diameter of midwoofer or midrange 143,5 mm / 5.65″ (Woofer) - 94 mm / 3.7″ (Mid)
- Mounting depth of midwoofer or midrange 68 mm / 2.68” (Woofer) - 34 mm / 1.34″ (Mid)
- Voice coil of midwoofer or midrange 36 mm / 1.42″ (Woofer) - 25 mm / 1″ (Mid)
- Cone of midwoofer or midrange Alu-ceramic (Woofer) - Magnesium (Mid)
- Dustcap / Phaseplug of midwoofer or midrange Alu-ceramic (Woofer) - IMPP (Mid)
- Basket of midwoofer or midrange Aluminum cast
- Magnet of midwoofer or midrange Ferrit (Woofer) - Neodym (Mid)
- Diameter of tweeter 54 mm / 2.1”
- Mounting diameter of tweeter 48 mm / 1.89″
- Mounting depth of tweeter 48 mm / 1.89”
- Voice coil of tweeter 28 mm / 1.1″
- Cone of tweeter Hand coated silk
- Housing of tweeter Black matt anodized
- Magnet of tweeter Dual Neodym
- Power handling W RMS 130 (Woofer) / 70 (Mid) / 100 (TW)
- Power handling W peak 210 (Woofer) / 110 (Mid) / 150 (TW)
- Impedance4 Ohm
- SPL 90 (Woofer) / 87 (Mid) / 90 (TW)
