Specifications

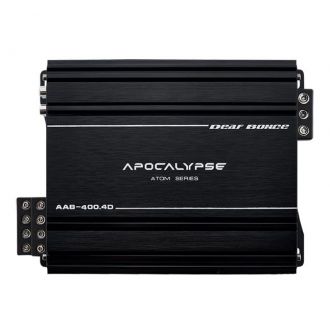

- Model: AAB-400.4D Atom
- Class: D
- Number of the channels: 4
- Frequency response: 10-20000 Hz
- 1 Ohm RMS Power (14.4 V): 430 W x 4
- 2 Ohm RMS Power (14.4 V): 265 W x 4
- 4 Ohm RMS Power (14.4 V): 140 W x 4
- 2 Ohm RMS Power (Bridge): 833 W x 2
- 4 Ohm RMS Power (Bridge): 516 W x 2
- Minimum permissible load on the channel: 1 Ohm
- Minimum permissible load in a bridge connection: 2 Ohm
- Input SPL: 0.2 - 6 V
- Low pass filter: 50-6000 Hz
- High pass filter: 15-6000 Hz
- LPF and HPF simultaneous operation: True
- Crossover: 12 dB/Oct
- Bass frequency adjustment: 45 Hz
- Input terminal: 4 Ga
- Output terminal: 8 Ga
- Damping factor: ≥ 260
- Working voltage: 9 - 15 V
- Signal-to-noise ratio: ≥ 100 dB
- Size: 16 x 22,8 x 6,3 cm
