Specifications

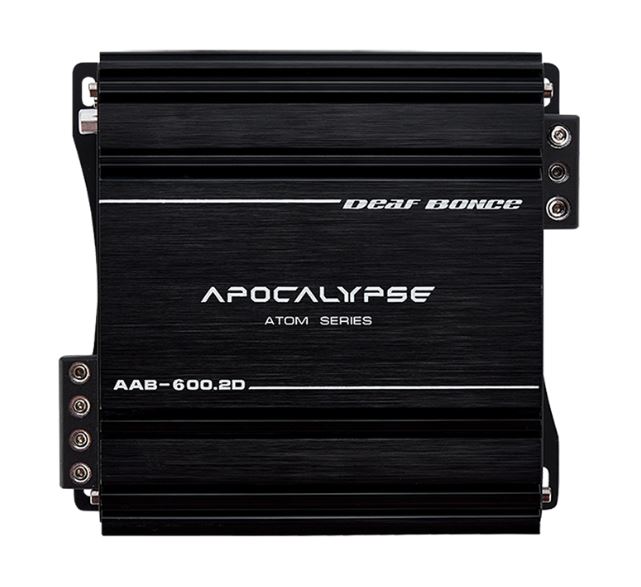

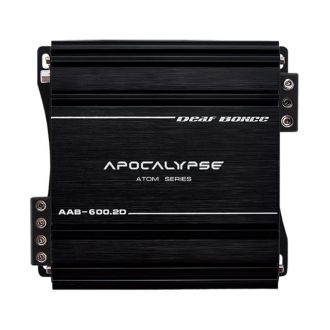

- Model: AAB-600.2D Atom
- Class: D
- Number of the channels: 2
- Frequency response: 15-20000 Hz
- 1 Ohm RMS Power (14.4 V): 670 W x 2
- 2 Ohm RMS Power (14.4 V): 450 W x 2
- 4 Ohm RMS Power (14.4 V): 250 W x 2
- 2 Ohm RMS Power (Bridge): 1380 W x 1
- 4 Ohm RMS Power (Bridge): 900 W x 1
- Minimum permissible load on the channel: 1 Ohm
- Minimum permissible load in a bridge connection: 2 Ohm
- Input SPL: 0.2 - 6 V
- Low pass filter: 15-1000 Hz
- High pass filter: 50-20000 Hz
- LPF and HPF simultaneous operation: True
- Crossover: 12 dB/Oct
- Input terminal: 4 Ga
- Output terminal: 8 Ga
- Damping factor: ≥ 260
- Working voltage: 9 - 15 V
- Signal-to-noise ratio: ≥ 100 dB
- Size: 16 x 17,3 x 6,4 cm
- Gross weight: 4.85 lb (2.20 kg)
