Specifications

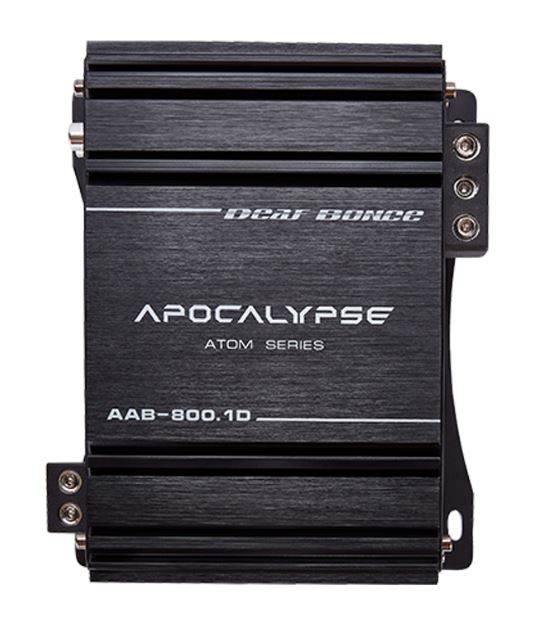

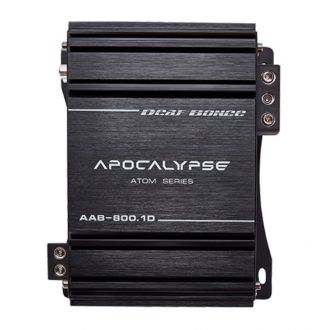

- Model: AAB-800.1D Atom
- Class: D
- Number of the channels: 1
- Frequency response: 15-20000 Hz
- 1 Ohm RMS Power (14.4 V): 790 W
- 1 Ohm RMS Power (12 V): 700 W
- 2 Ohm RMS Power (14.4 V): 480 W
- 4 Ohm RMS Power (14.4 V): 270 W
- Minimum permissible load on the channel: 1 Ohm
- Input SPL: 0.2 - 6 V
- Low pass filter: 80-20000 Hz
- High pass filter: 15-1000 Hz
- Crossover: 12 dB/Oct
- Bass frequency adjustment: 35-70 Hz
- Input terminal: 4 Ga
- Output terminal: 8 Ga
- Damping factor: ≥ 210
- Working voltage: 9 - 15 V
- Signal-to-noise ratio: ≥ 100 dB
- Size: 16 x 13,5 x 6,4 cm
- Gross weight: 3.88 lb (1.76 kg)
