Specifications

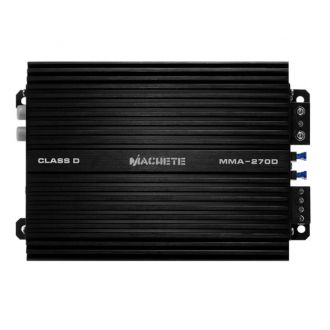

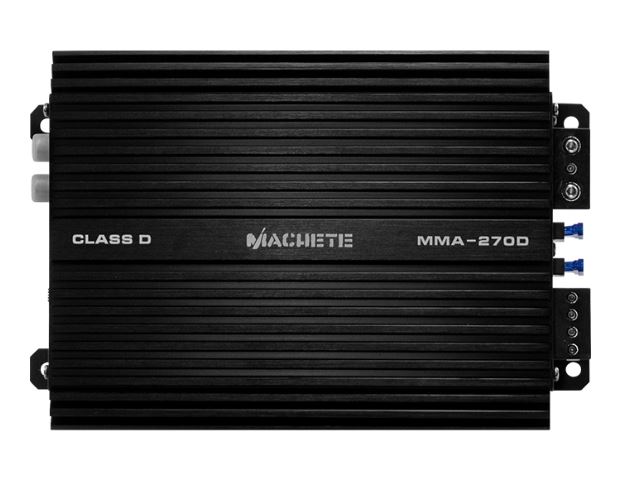

- Model: MMA-270D
- Class: D
- Number of the channels: 2
- Frequency response: 10-22000 Hz
- 2 Ohm RMS Power (14.4 V): 90 W x 2
- 4 Ohm RMS Power (14.4 V): 70 W x 2
- 4 Ohm RMS Power (Bridge): 180 W x 1
- Minimum permissible load on the channel: 2 Ohm
- Minimum permissible load in a bridge connection: 4 Ohm
- Input SPL: 0.2 - 6 V
- Low pass filter: 50-500 Hz
- High pass filter: 50-500 Hz
- Crossover: 12 dB/Oct
- Damping factor: ≥ 100
- Working voltage: 9 - 15 V
- Signal-to-noise ratio: ≥ 88 dB
- Size: 13,2 x 20,2 x 4,7 cm
- Gross weight: 3.75 lb (1.70 kg)
