Specifications

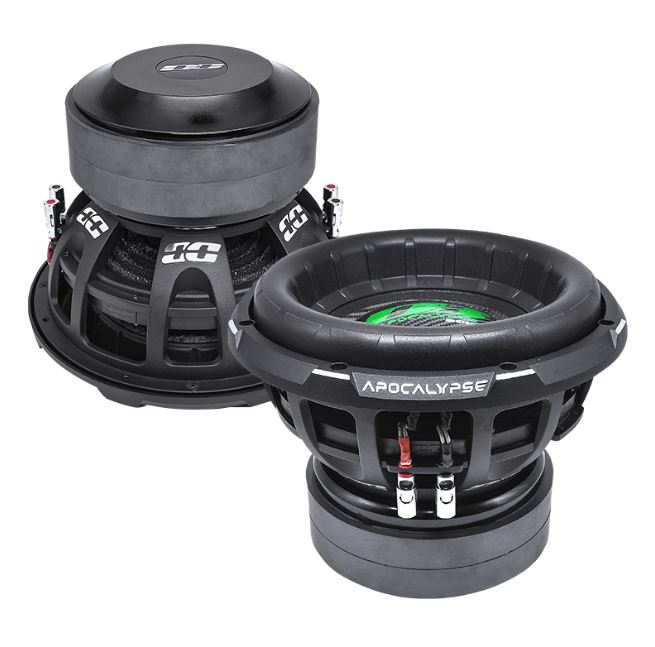

- Model: DB-3012 D1
- Type: Subwoofer
- Size: 12"
- Voice coil size: 3.00"
- Cone: Paper
- Magnet: Ferrite
- Surround: Foam
- RMS Power: 2400 W
- MAX Power: 4800 W
- Frame: Alu
- Impedance: 1+1 Ohm
- SPL: 86.00 dB
- Fs: 33.00 Hz
- Qts: 0.41
- BL: 23.80
- Vas: 29.50 L
- Xmax: 19.00 mm
- Mounting depth: 8.82"
- Cut-out dimension: 11.18"
