Specifications

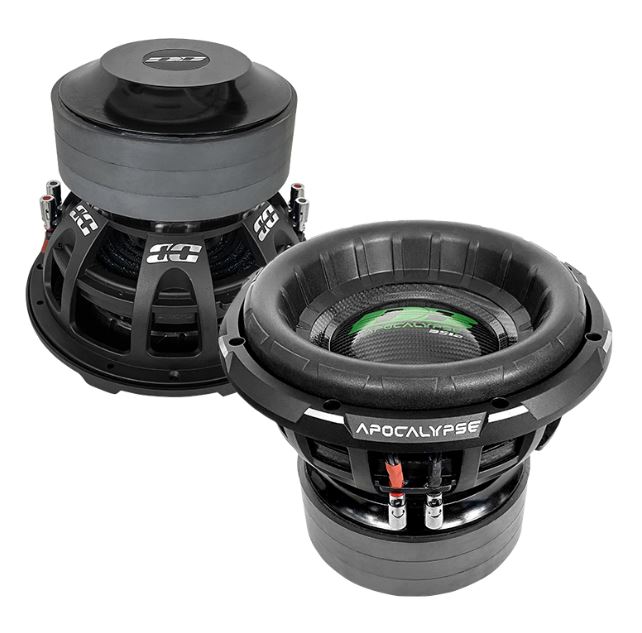

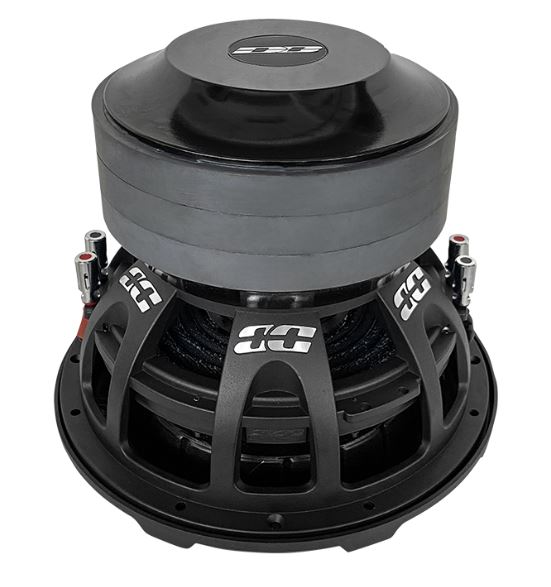

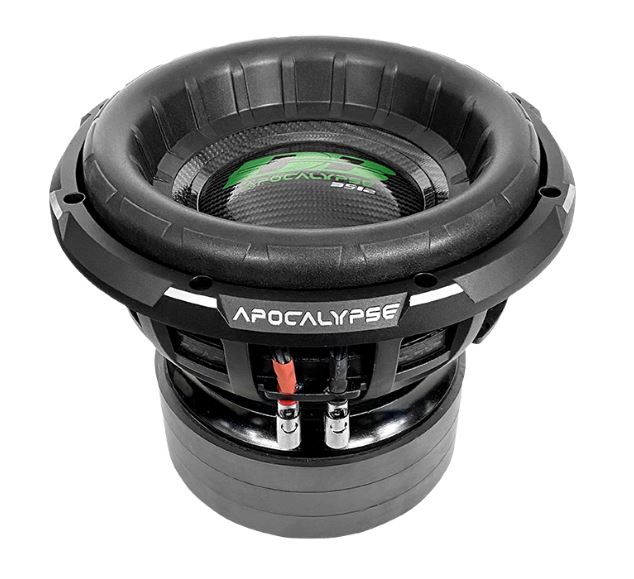

- Model: DB-3512 D1
- Type: Subwoofer
- Size: 12"
- Voice coil size: 3.50"
- Cone: Carbon
- Magnet: Ferrite
- Voice coil wire: None
- Surround: Foam
- RMS Power: 3000 W
- MAX Power: 6000 W
- Frame: Alu
- Impedance: 1+1 Ohm
- SPL: 86.80 dB
- Fs: 32.50 Hz
- Qts: 0.39
- BL: 24.80
- Vas: 28.90 L
- Xmax: 22.50 mm
- Mounting depth: 9.61"
- Cut-out dimension: 11.18"
