The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.
The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.

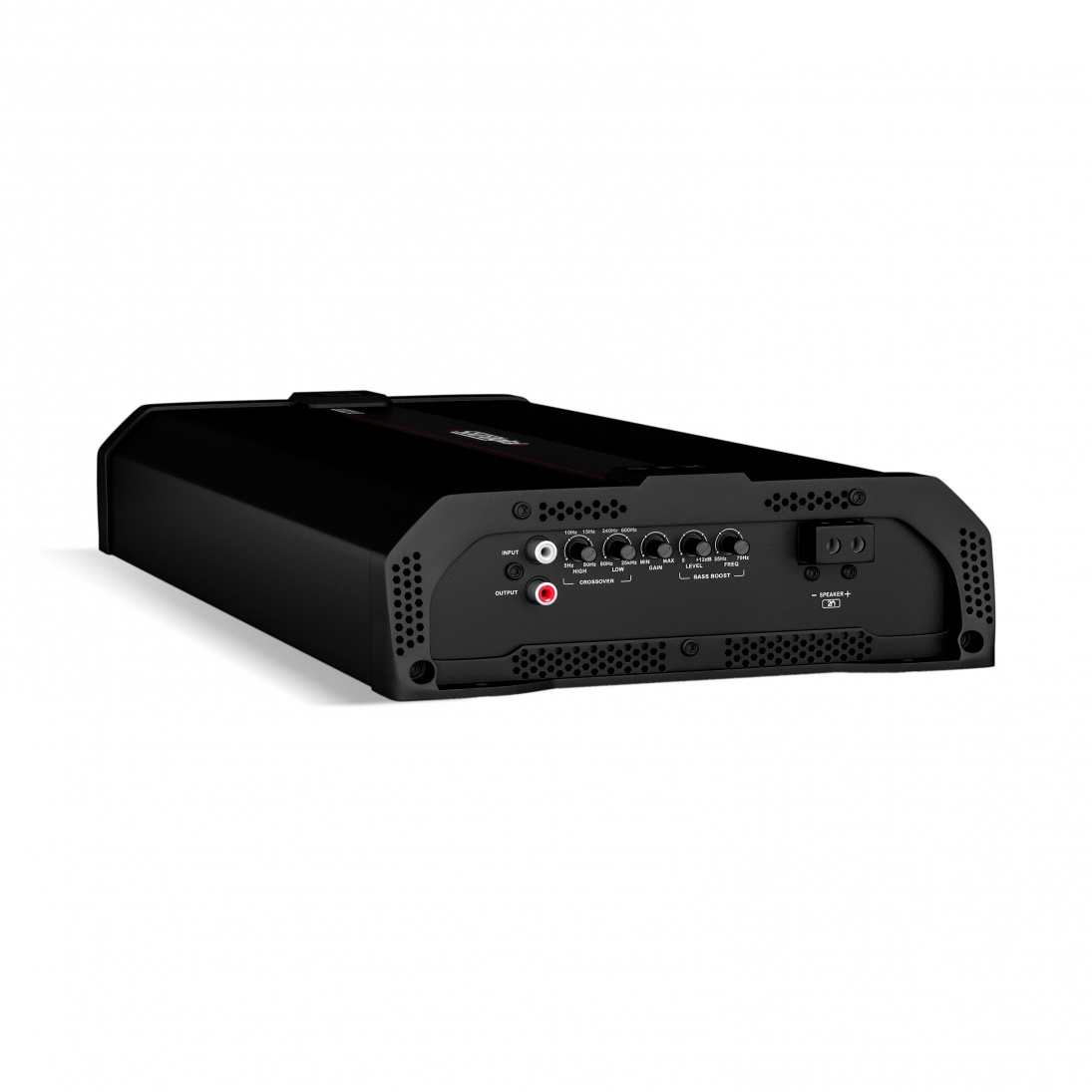

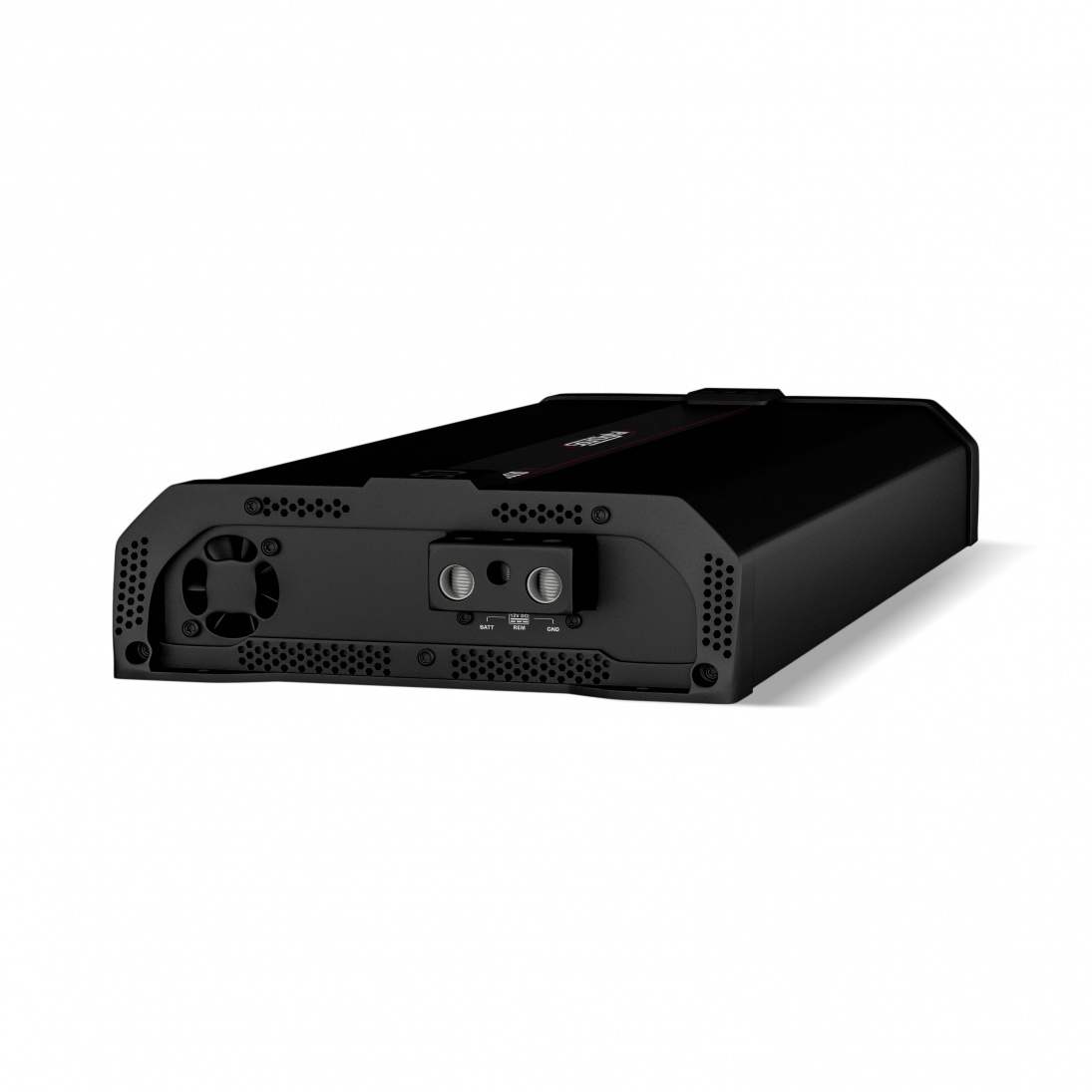

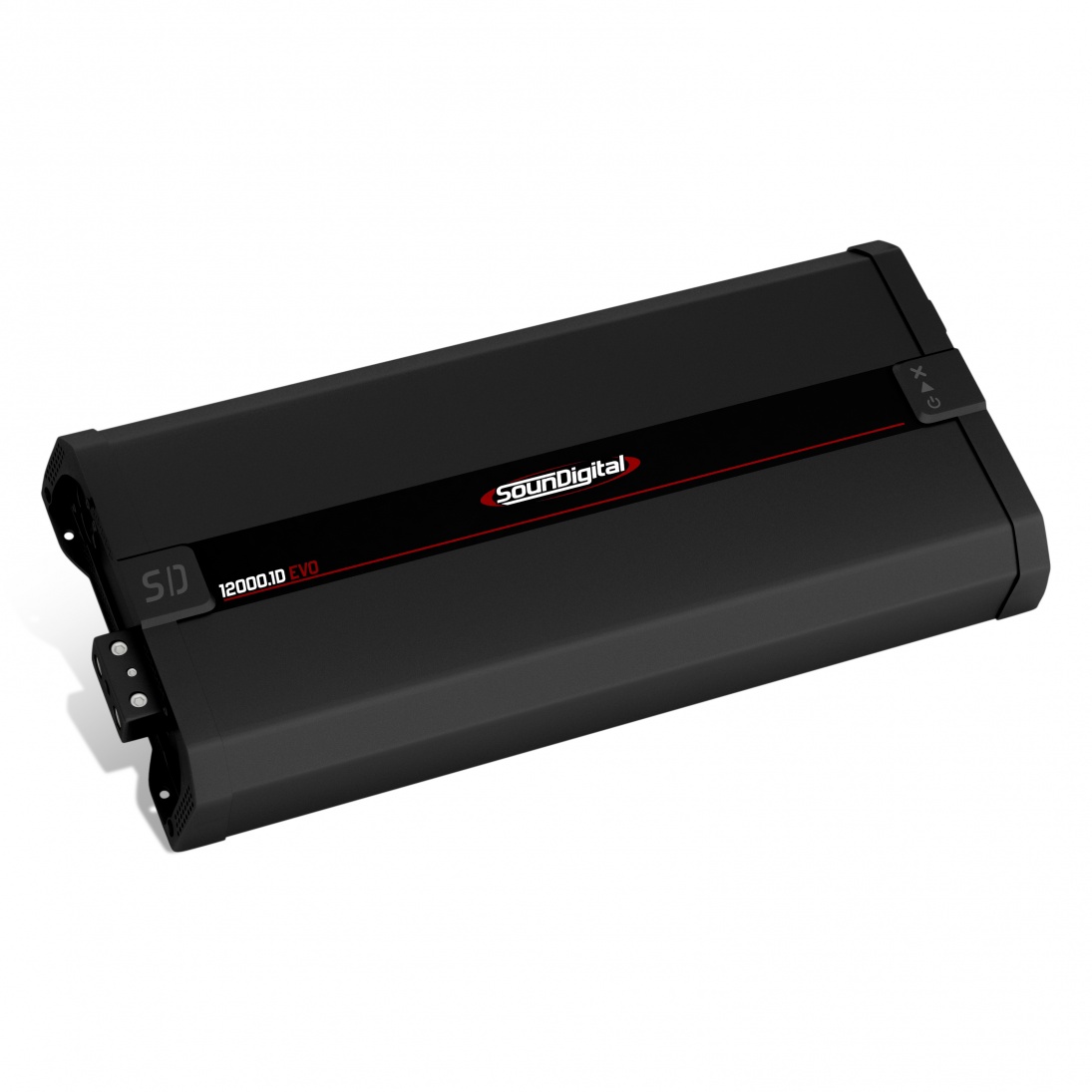

12000.1 EVOX – 2Ω
- Power @ 12.6V @ 4Ω: 1 X 7920 WRMS
- Power @ 12.6V @ 2Ω: 1 X 12000 WRMS
- Power @ 12.6V @ 1Ω: N/A
- Power @ 14.4V @ 4Ω: 1 X 8831 WRMS
- Power @ 14.4V @ 2Ω: 1 X 13380 WRMS
- Power @ 14.4V @ 1Ω: N/A
- Operating Voltage: 8V – 16V
- Current Draw (Music): 627 A
- Current Draw (Max): 1253 A
- Recommended Fuse (Music): 2 X 350 A
- Total Efficiency: 76%
- Damping Factor: 200
- Frequency Response (-3dB): 5Hz – 500Hz
- SNR: 76dB
- Crossover HPF: 5Hz – 30Hz
- Crossover LPF: 50Hz – 500Hz
- THD + N (10% Rated Power): 0.1%
- Product Dimensions: 20.8 x 8.8 x 2.8 in
- Product Dimensions: 53.0 x 22.5 x 7.1 cm
