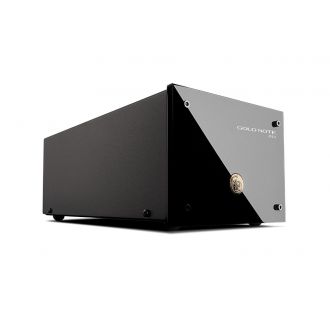

PH-1 is a convenient high-performance MM and MC phono preamplifier featuring an Ultra Linear Power Supply. It provides superior audio purity within any audio system and easy access to impedance settings. The elegantly shaped box with a black lacquered front panel adds a stylish touch of classic Italian design to your audio chain and looks great with all Gold Note turntables.
- ANALOGUE INPUTS: MM or MC 1 stereo RCA
- THD (TOTAL HARMONIC DISTORTION): <0.05% THD @ 20Hz – 20KHz
- SIGNAL TO NOISE RATIO: -88dB
- DYNAMIC RESPONSE: 105dB
- FREQUENCY RESPONSE: 20Hz – 20KHz @ +/- 3dB
- INPUT IMPEDANCE: 470Ω MC or 47kΩ MM
- GAIN: 65dB MC or 45dB MM
- OUTPUT IMPEDANCE: 50Ω
- LINE OUTPUT LEVEL: 2V RCA fixed
- INPUT SENSITIVITY: 0.15mV MC, up to 7.0mV MM
- POWER SUPPLY: 100-120V /220-240V, 50/60Hz (depending on market destination, not convertible), Power Consumption: 20W max
- DIMENSIONS: 100mm W, 105mm H, 260mm D
- WEIGHT: Kg. 2.5 net, Kg. 4 boxed
- FINISHES: Front Panel: Black Glossy Grand Piano, Case: Black Powder Coated
